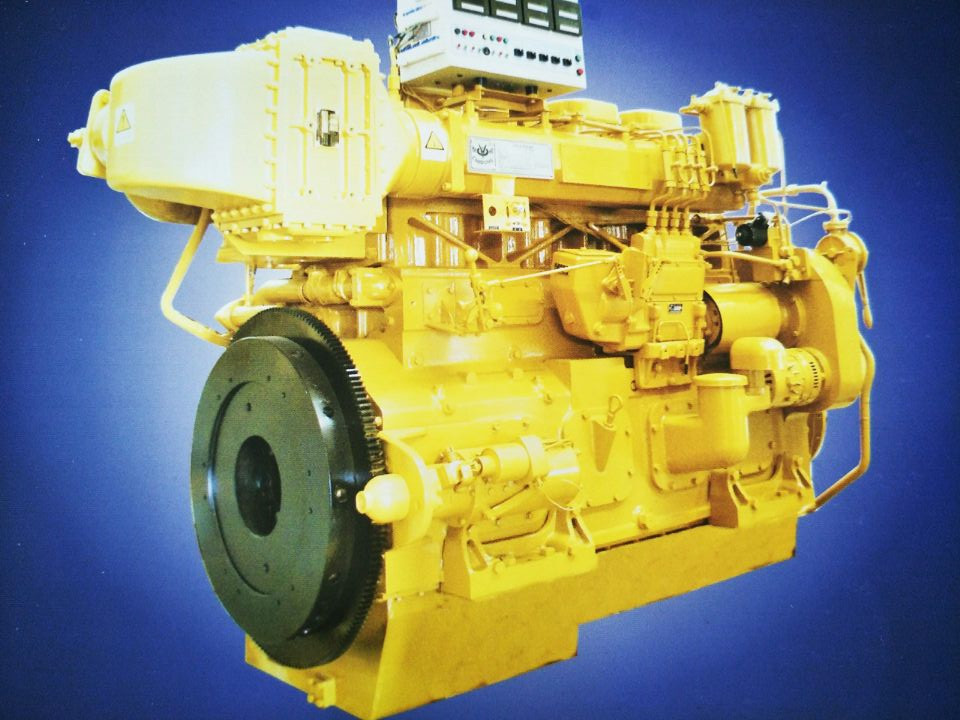

    chidong 4190ZLCZ4-2R marine diesel engine parts turbocharger water pump mechanical governor

    Ask Lasest Price
    Brand Name : chidong
    Model Number : 4190ZLCZ4-2R
    Certification : ce iso9001
    Price : 1
    Supply Ability : 1
    Delivery Time : 1
    • Product Details
    • Company Profile

    chidong 4190ZLCZ4-2R marine diesel engine parts turbocharger water pump mechanical governor

    4 in-line marine diesel engines
    ModelRated Power(kw/hp)Rated speed(r/min)Specific fuel consumption(g/kw’h)Specific oil consumption(g/kw’h)Overall dimension L*B*H(mm)Net weight(kg)
    4190ZLCZ-R330/4501450≤ 205≤ 1.52290*1240*17503000
    4190ZLC330/4501450≤ 205≤ 1.52290*1240*17503000
    4190ZLCZ-1R270/3601200≤ 205≤ 1.52290*1240*17503000
    4190ZLC-1270/3601200≤ 205≤ 1.52290*1240*17503000
    4190ZLCZ-2R220/3001000≤ 205≤ 1.52290*1240*17503000
    4190ZLC-2220/3001000≤ 205≤ 1.52290*1240*17503000
    4190ZLCZ1-2R180/2401000≤ 205≤ 1.52290*1240*17503000
    4190ZLC1-2180/2401000≤ 205≤ 1.52290*1240*17503000
    4190ZLCZ-3R300/4001300≤ 205≤ 1.52290*1240*17503000
    4190ZLC-3300/4001300≤ 205≤ 1.52290*1240*17503000
    4190ZLC1330/4501450≤ 205≤ 1.52290*1240*17503000

    Main technical data
    No. and arrangement of cylinders:4-cylinder,in-line
    Type:Four stroke,water cooled,turbocharged and aftercooled,direct injection
    Bore:190mm
    Stroke:210mm
    Total displacement:23.82L
    Compression ration:14:1
    Direction of rotation:Counter-clockwise engine without R,clockwise engine with R in the model(facing to flywheel)
    Starting method:Air motor or electric motor
    Lubricating method:Pressure and splash lubrication
