    jinan diesel engine 500KW biogas generator set model 500GF-NK

    Ask Lasest Price
    Brand Name : JICHAI JINAN
    Model Number : G12V190ZDT-2
    Price : 67000
    Supply Ability : 200 pcs month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

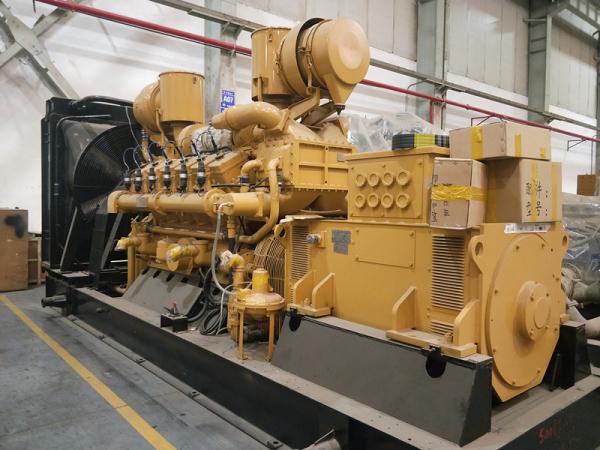

    jinan diesel engine 500KW biogas generator set model 500GF-NK

    Biogas generators have become an essential component for organizations seeking sustainable energy solutions. The 500KW biogas generator set detailed below offers high efficiency, reliable performance, and environmental benefits, suitable for various applications. Below are its technical specifications, supply scope, pricing details, and terms.


    1. Technical Specifications of the Biogas Generator Set

    Generator Parameters

    ParameterDetails
    Model of Generator500GF-NK
    Rated Power500KW
    Rated Speed1000 r/min
    Rated Voltage400V
    Rated Frequency50Hz
    Power Factor0.8 (lagging)
    Supply MethodThree-phase four-wire system
    Excitation MethodBrushless
    Starting Method24V DC start
    Cooling MethodClosed water cooling
    Speed RegulationElectronic speed regulation (WOODWARD)
    Overall Dimensions (L×W×H)6195×2200×2778 mm
    Net Weight12,500 kg

    Electrical Performance

    ParameterDetails
    Voltage
    Stable Regulating Rate±2.5%
    Instantaneous Regulating Rate+22% to -18%
    Recovery Time1.5 seconds
    Fluctuation≤1.2%
    Frequency
    Stable Regulating Rate0–5%
    Instantaneous Regulating Rate≤±15%
    Recovery Time<12 seconds
    Fluctuation≤2%

    Engine Parameters

    ParameterDetails
    Model12V190ZDT1-2
    Rated Power/Speed550KW / 1000 r/min
    Cylinders12, 60° V-type
    Type4-stroke, water-cooled, turbocharged and aftercooled, spark plug ignition, out-mixed
    Bore190 mm
    Stroke210 mm
    Compression Ratio8:1
    No-Load Minimum Stable Speed700 r/min
    Gas Pressure80–150 KPa
    Heat Consumption Rate11,000 kJ/kWh
    FuelBiogas
    Oil Consumption≤1.6 g/kWh
    Oil Tank Volume400 liters
    Exhaust Temperature (Before Turbine)≤650°C
    Water Outlet Temperature≤90°C
    Water Inlet Temperature≤70°C
    Intercooler Inlet Temperature≤45°C
    Noise Level123 dB

    Generator Parameters

    ParameterDetails
    Model1FC5
    Power Factor 0.8 Efficiency94%
    Power Factor 0.8 Power480KW
    Frequency50Hz
    Voltage400V
    Wiring MethodThree-phase and four-wire
    Protection LevelIP23
    Insulation ClassF
    Excitation MethodBrushless
    Speed1000 r/min
    Net Weight8,300 kg

    Environmental Requirements

    The generator is designed to operate stably under these conditions:

    • Temperature: -35°C to +35°C
    • Relative Humidity: <90% at 20°C
    • Altitude: ≤1000 m

    Standard conditions for rated power output:

    • Atmospheric Pressure: 100 kPa
    • Medium Temperature: 25°C
    • Relative Humidity: 30%

    2. Gas Composition Requirements

    ComponentPercentage
    CH₄≥76.0%
    C₂H₆<10.0%
    C₃H₈<8.00%
    C₄H₁₀<6.00%
    H₂S<0.10%
    CO₂<1.00%
    • Calorific Value: >41,860 kJ/m³
    • Gas entering the generator must be free from water, oil, and impurities (dust content <10 mg/m³, grain impurity <5μ).

    3. Supply Scope

    The package includes:

    • Biogas engine and alternator
    • Control panel
    • Spare parts and tools
    • Radiator and silencer
    • Oil and water preheating device
    • Export wooden case and documentation

    4. Delivery Terms

    • Delivery within 60 days after contract confirmation and receipt of advance payment.

    5. Warranty Period

    • 15 months from the delivery date or 1500 operating hours, whichever comes first.

    6. Payment Terms

    1. 30% Advance Payment: Within 7 days after signing the contract.
    2. 70% Remaining Balance: To be paid within 15 days of the goods being ready for shipment, as per the seller's confirmation and packing list.

    This 500KW biogas generator offers a cost-effective and environmentally friendly solution for power generation. For inquiries or to place an order, feel free to contact us!
